Concrete Pad Alternative
The Ultra Base Foundation Panel is used primarily as an alternative to an asphalt or concrete base for a wide variety of applications. This structurally sound panel possesses excellent drainage capabilities and is safer, more durable and more environmentally friendly than concrete and asphalt. It features an interlocking design that not only creates an ultra-flat surface ideal for maximum performance, but also allows for thermal expansion and contraction so the surface does not buckle in extreme weather conditions.
Specifications
Panel Dimensions (Uninstalled)
- 30” x 30” x 1.25”
- Metric: 762mm x 762mm x 31.75 mm
Square Footage Area Once Installed
- 28" x 28" x 1.25" or 5.44 square feet
- Metric: 711.2mm x 711.2mm x 31.75mm or 0.505 square meters
Average Panel Weight
- 10.2 lbs or 1.86 lbs square foot
- 4.63 kgs or 0.84 kgs per square meter
Color: Black
PSI: Exceeds 500 lbs. per square inch
Vertical Drainage: 424.5" per hour
Horizontal Drainage: 12.1 gallons per minute depending upon gradient
Benefits of Ultra Base over Concrete Pad
Installs Quickly
Reduces installation time by approximately 40%...saving time and money.
Installs Easily
Simplifies the base preparation process and requires no heavy equipment.
Installs Cleanly
With no need for heavy equipment, damage to construction sites is minimized.
Drains Thoroughly
Excellent drainage characteristics help comply with impervious surface regulations.
Enhances Safety
Provides a solid, load-bearing, interlocked base while still offering more cushion than hard concrete.
Performs Better
Provides a more solid, load-bearing, interlocked base that eliminates concerns with soft spots, pitting and erosion.
Improves Versatility
Ideal for creating bases in hard to reach or limited access areas like courtyards, rooftops or busy city streets.
Enhances Flexibility
Unlike a permanent concrete pad, it can be disassembled and moved rather easily in future.
Saves Money
Add up all the direct and indirect costs associated with transporting materials, digging the foundation, installing 5” of rock, repairing the surrounding land, and dealing with warranty claims and it becomes obvious... Ultra Base Saves You Money.
A Complete, Finished Surface
The Foundation Panel system includes interlocking corner and edge pieces as well as an ADA accessible ramp allowing you to create a functional and attractive base.
Finished Edge Trim
Interlocks with primary panels to finish off the look and allow water to run off.
Finished Corner Piece
Interlocks with Finished Edge Trim for a finished outside corner look.
ADA-Compliant Ramp
Interlocks with primary panels and supports movement of equipment, wheelchairs, etc.
Product Videos
Assembly Demonstration
Ultra Base interlocking Foundation Panel easily snaps together making for a quick and fast installation. Press the play button below to see how the Foundation Panel tiles can assemble.
Panel Demonstration
Ultra Base demonstrates different types panel blends that can be used for applications such as athletic fields, indoor use, and multiple other situations to use Ultra Base panels.
Common Applications

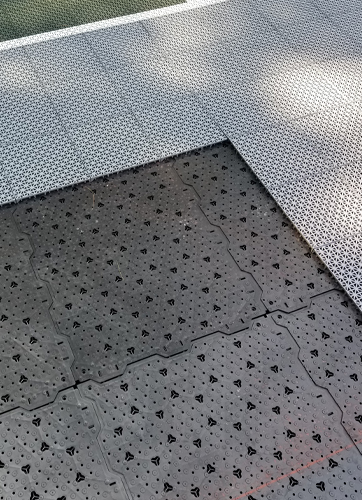

Courts & Rinks

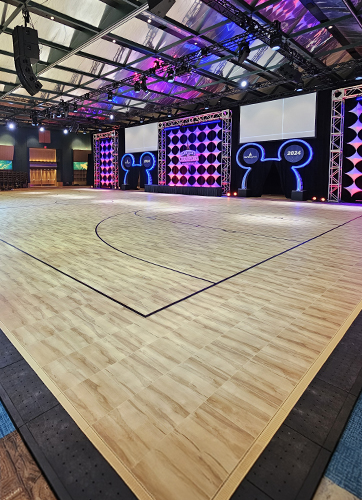

Event & Portable Flooring

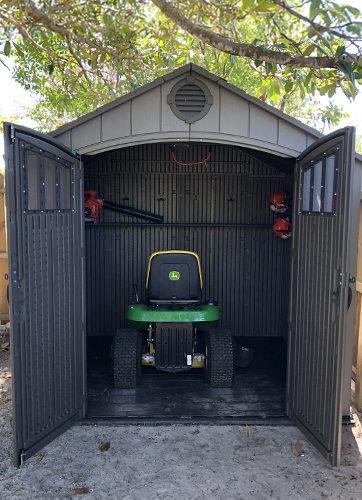

Concrete Pad Alternative

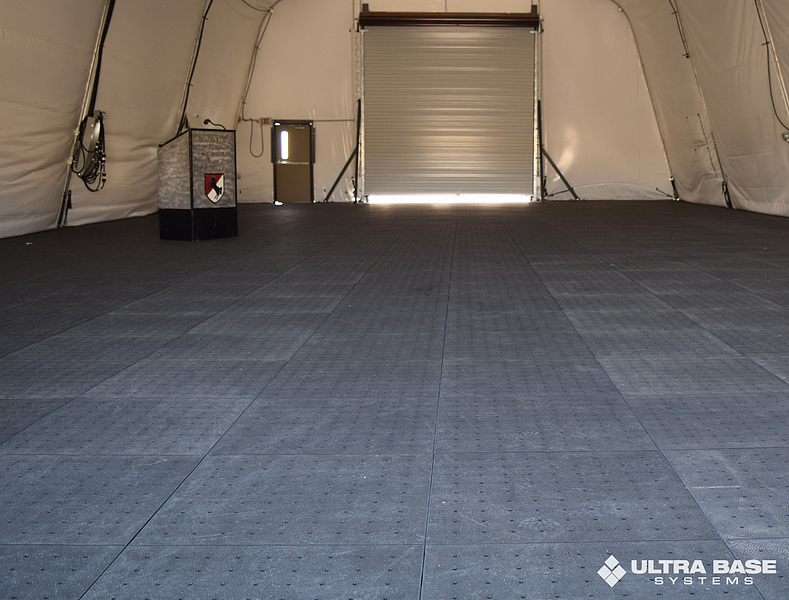

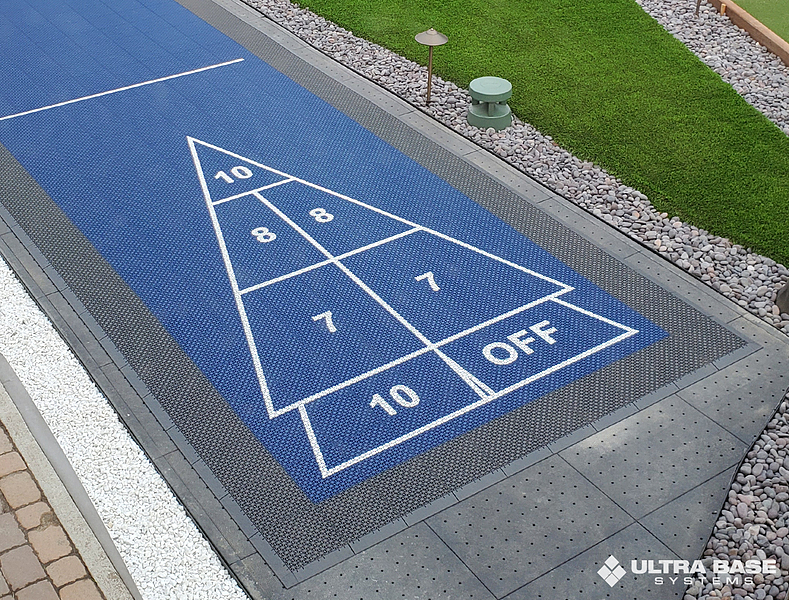

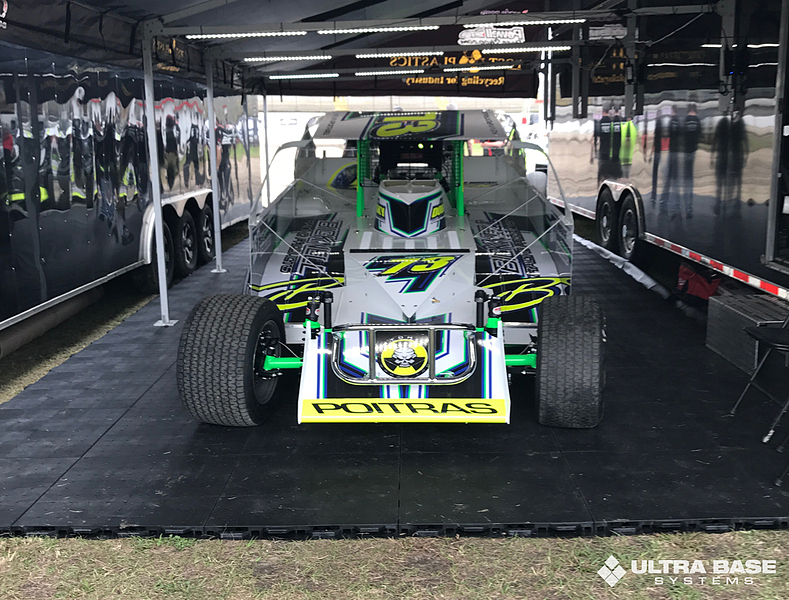

Photo Gallery
Is the Foundation Panel Right for my Application?
Whatever type of base you need, Ultra Base has a system that will make it easier, cleaner and more cost effective to install.
Featured Project
Contest Of Champions
After losing its venue for a national dance competition, Contest of Champions reached out to RG Event Surfacing to create a portable dance floor that mimicked a wood basketball court. Ultra Base panels were used to create the solid, stable and ultra-flat base for this awesome event. View this project.
Get Started with Ultra Base Today
Talk to an Ultra Base team member today to discuss your project, application, and pricing options. Our experienced team will ensure you're choosing the right Ultra Base product for your application.
